Description
Features:
- Stores 44,000 pairs of measured values
- Fail-safe, thanks to internal battery
- 3 years battery lifetime
- LAN-interface
- Compatible with RMS Gateway, RMS server software and RMS Cloud
- Conforms to FDA 21 CFR Part 11 / GAMP5
RMS-LOG-L
Price on request Request a quote

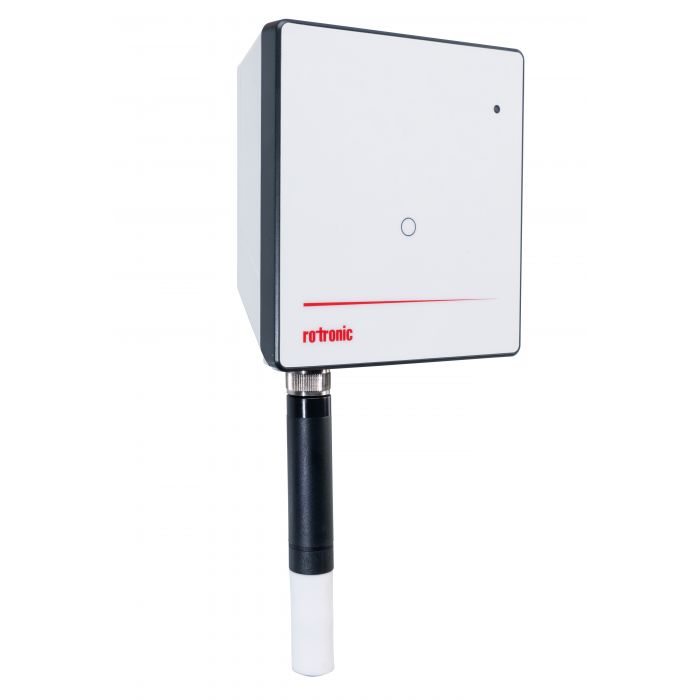

The data logger is the flexible component between the probe and the database in the ROTRONIC Monitoring System. It stores 44,000 pairs of measured values from the exchangeable HygroClip probe, and transmits them to the RMS database via LAN or wireless link. It guarantees absolute data protection, even if power supply and communications should temporarily break down.
Specifications
| Dimensions | 105 x 113 x 38 mm |
|---|---|
| Exploitation software | RMS-Config / RMS Server Software / RMS Cloud |
| Software Update | Via RMS-Config / RMS Server Software / RMS Cloud |
| IP protection rating | IP65 |
| FDA/GAMP compatibility | FDA 21 CFR Part 11 and GAMP compatible |
| Measurement interval | 10 s to 15 min |
| Communication interfaces | Ethernet |
| Reverse voltage protection | Protection diode to V + |
| Weight | 200 g |
| Housing | ABS |
| Current consumption | 50 mA |
| Power supply | 24 VDC / battery: 2 x AA, EVE-ER14505 |
| Battery lifetime | 3 years (at 23 °C and interval of 1 minute) |
| Measured value memory | 44,000 pairs of measurement values |
