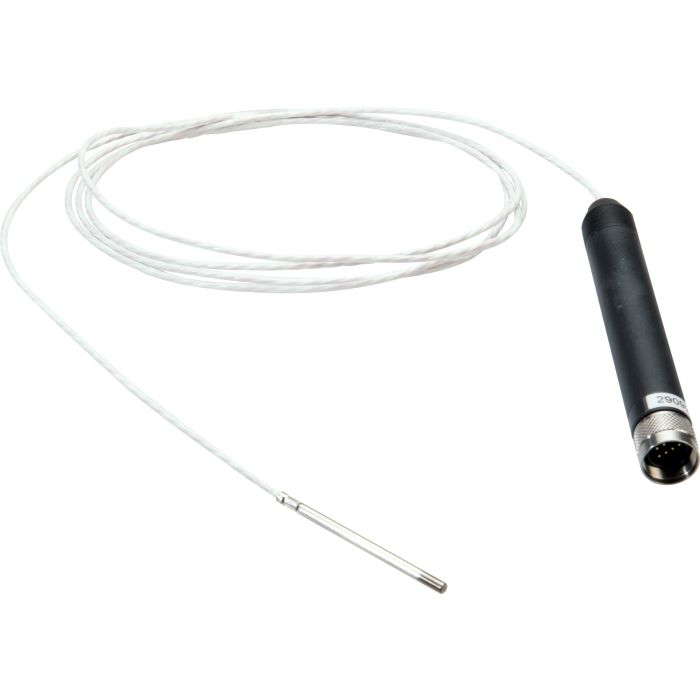

The RMS-TCD-S-001 digital probe was designed for all temperature monitoring applications where accuracy and interchangeability are crucial. The temperature probe is attached to a 2m cable to ensure flexibility and ease of use during calibration.
Benefits
Applications
| Temperature sensor | 4 wire PT100 1/3 DIN (DIN EN 60751) |
|---|---|
| Long-term stability | ±0.5 °C/year |
| Measuring range | -200…200°C* (*see data sheet / siehe Datenblatt / voir fiche technique / vedere scheda tecnica) |
| Relative humidity range | 0…100 %rh |
| Digital output signal (standard) | UART |
| Storage Conditions | -40…85 °C |
| IP protection rating | Housing: IP65 Sensor : IP68 |
| Connector | Standard Rotronic 7-pin connector |
| Length | 110 mm |
| Communication interfaces | MODBUS RTU |
| Probe material | Stainless steel – austenitic – 1.4571 (316Ti) bar |
| Probe cable material | Perfluoroalkoxy alkanes (PFA) |
| Enclosure material | Polycarbonate |
| Probe lengths | 50 mm |
| Housing | Yes |
| Current consumption | -3.8 mA |
| Power supply | 3.3…5 VDC |
| Adjustment | Option 1: 2 point user adjustment possible Option 2: A, B and C coefficients |
| Evaluation software / Compatibility | RMS Config; Rotronic Monitoring System |
| T63 | 90 s |
| Battery lifetime | RMS-LOG-868/915/L: @60 s 240 d RMS-LOG-L-D: @60s 18 d |
| Cable lengths | 2 metres |
| Accuracy | ±0.25 °C at -50…85 °C |
| Diameter | 15 mm |
| Cable diameter | 2.2 mm |
| Probe diameter | 3 mm |
