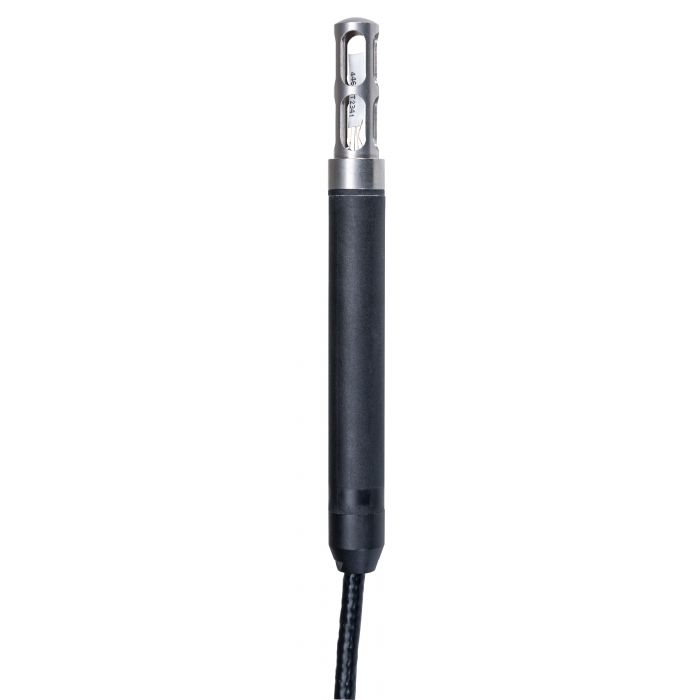

The RMS-HCD-IC digital probe is characterized by its high performance. Very low current consumption, the highest accuracy, and measurement results within 90 ms (electronics) are its outstanding features. This is due to the new AirChip, which together with the new HYGROMER® HT-1 sensor forms a powerful combination.
| Probe type | Digital standard probe |
|---|---|
| Humidity sensor | Hygromer HT-1 |
| Temperature sensor | PT100 1/3 DIN Class B |
| Long-term stability | <1 %rh / year |
| Accuracy w. adjustment profile “standard” | at 23 °C / 10, 35, 80 %rh ± 0.8 %rh / ± 0.1 K |
| Reproducibility Airchip | <0.02 %rh / 0.01 K |
| Response time t 63 | <15 s, without filter |
| Power consumption | 3.3…5.5 VDC |
| Dimensions | Ø15 x 144 mm Sensor Head Ø15 x 111 mm Electronic |
| Operating range | -100…200 °C / 0…100 %rh |
| Allowed wind speed | 20 m/s, with filter |
| Exploitation software | RMS-Config / RMS Server Software / RMS Cloud |
| Psychrometric calculations | Dew or frost point |
| Software Update | Via RMS-Config / RMS Server Software / RMS Cloud |
| Digital output signal (standard) | UART |
| FDA/GAMP compatibility | FDA 21 CFR Part 11 and GAMP compatible |
| Probe adjustment by software | 1 Point & multipoint %rh & °C |
| Reverse voltage protection | Mechanically in the connector |
| Max. cable length | <3 m |
| Probe protection | Filter carrier, brass nickel plated |
| Filter cartridge | depending on the application, order separately |
| Weight | 376 g |
| Housing | Polycarbonate |
| Current consumption | <0.5 mA @ 2.5…5.5 VDC |
| Filter type | No filter |
| Protocols | Modbus RTU |
